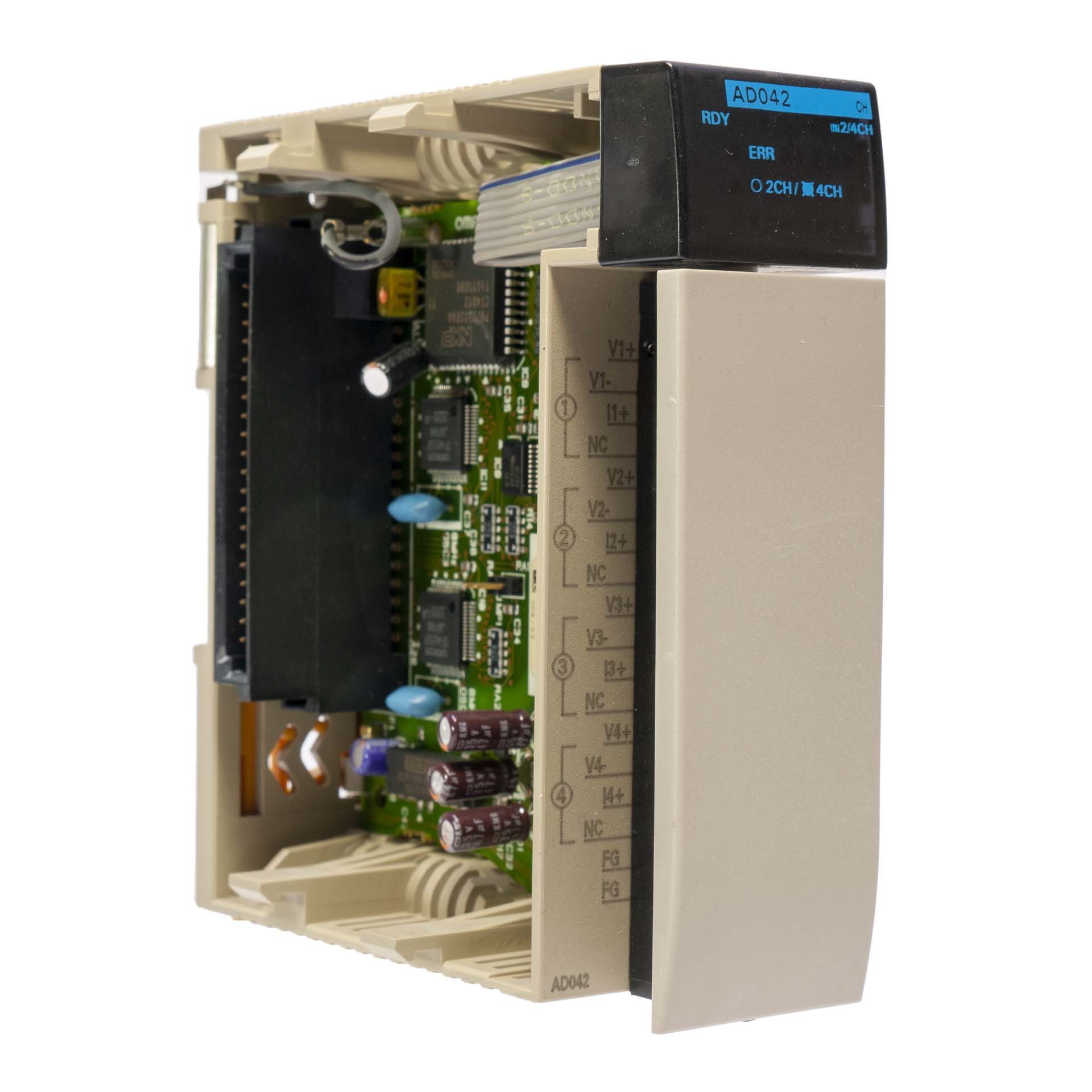

OMRON CQM1-AD042 Analog input unitSpecificationsNumber of inputs : 4Input ranges : -10 V to +10 V, 0 V to 10 V, 0 V to 5 V, 0 mA to 20 mAResolution : 12 bitsAccuracy : 25 °C 0.5%, 0 to 55 °C 1 %Conversion speed : 1.2 ms / channelInsulation : 500 V AC between output and PLC busCurrent consumption : 170 mA at 5 V DCInput type : DifferentialInput impedance : voltage 1 MW, current 250 WPower supply : internal DC/DC converter

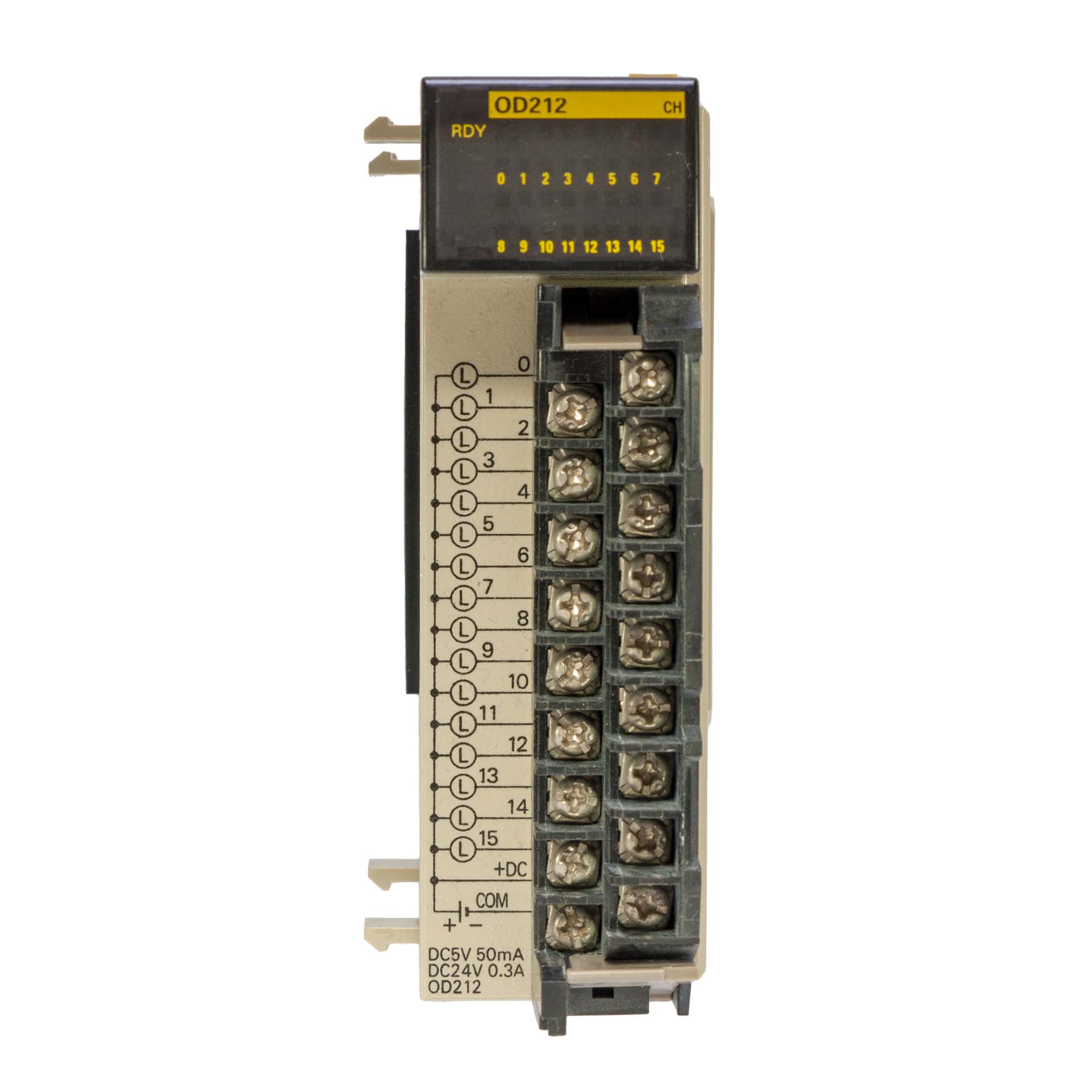

Omron CQM1-OD212 Transistor Output Module 16pts PNP16 output points, 0.3 AMax. Switching Capacity - 50 mA at 4.5 VDC to 300 mA at 26.4 VInternal Current Consumption - 170 mA max. at 5 VDC

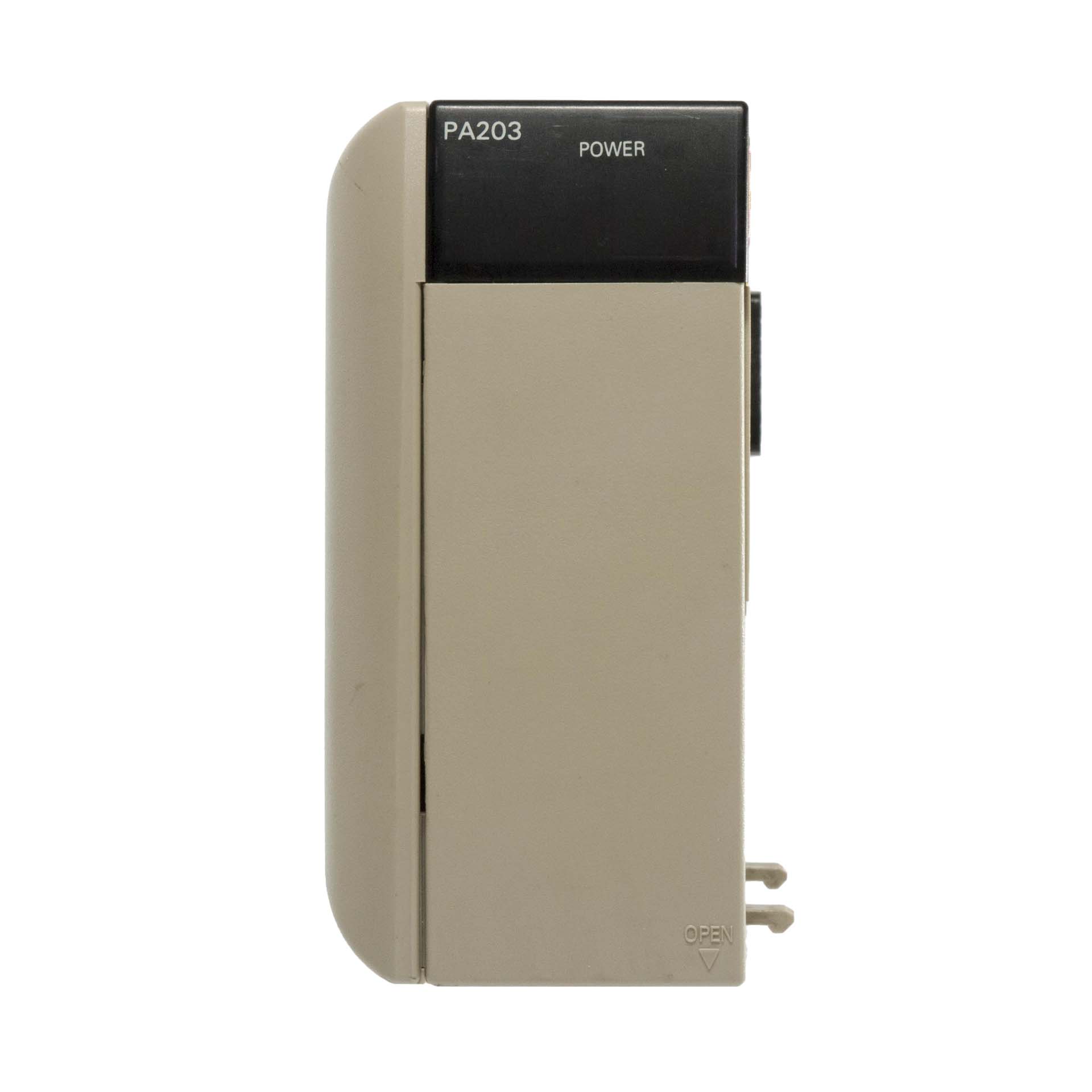

Omron CQM1-PA203 PLC Power Supply Supply voltage: 100 to 240 VAC, 50/60 Hz Operating voltage range: 85 to 264 VAC Operating frequency range: 47 to 63 Hz Output capacity 5 VDC: 3.6 A (18 W) Power consumption: 60 VA max.

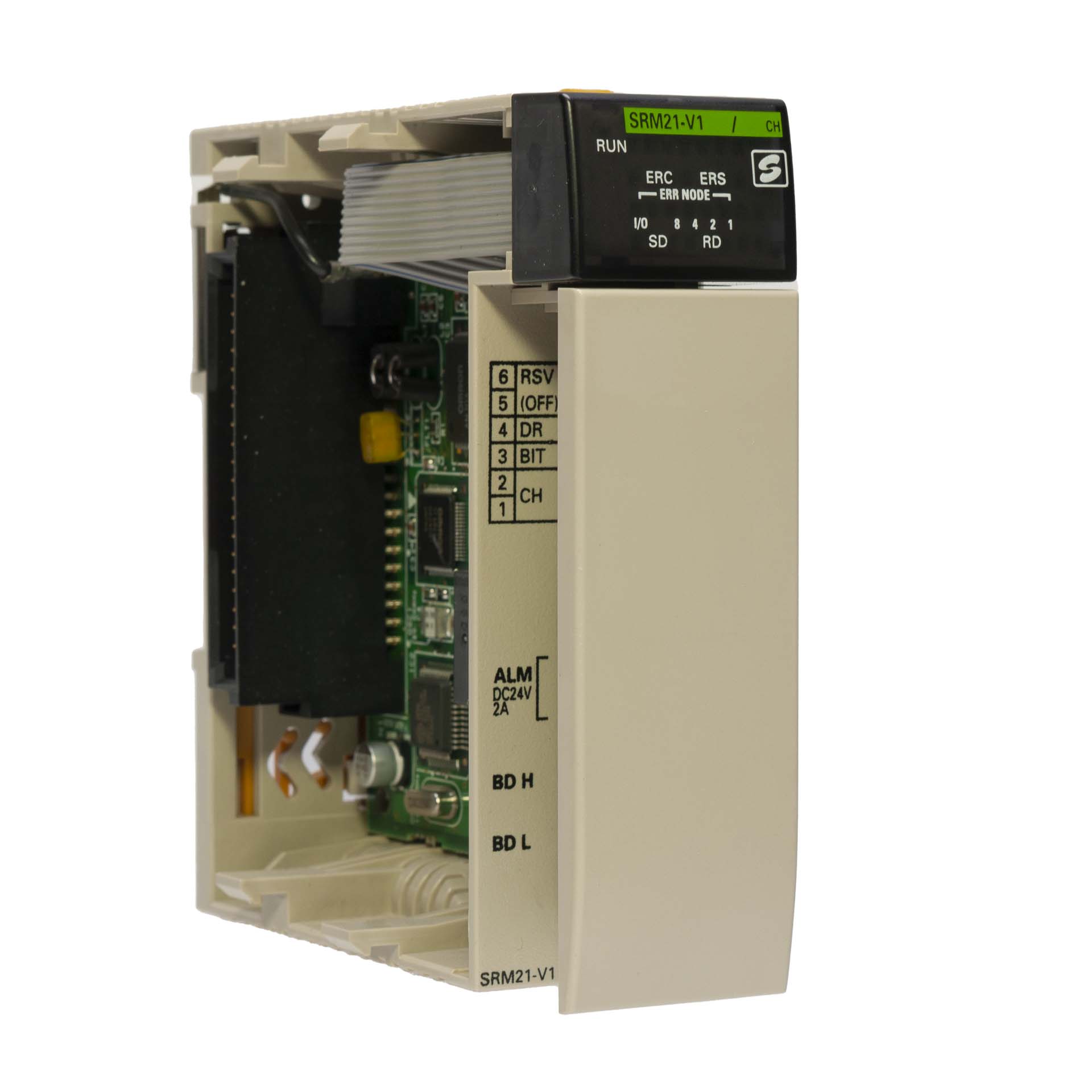

Compobus/S Master Unit for CQM1A maximum of 128 I/O points available (Possible to set 32, 64, or 128 I/O points).Connects to a maximum of 16/32 Slaves.Communications cycle time: 0.5 ms max. (at baudrate 750 kbps).Communications distance: Extended to 500 m max. (at baud rate 93.75 kbps).Connection to Analog Terminals now supported

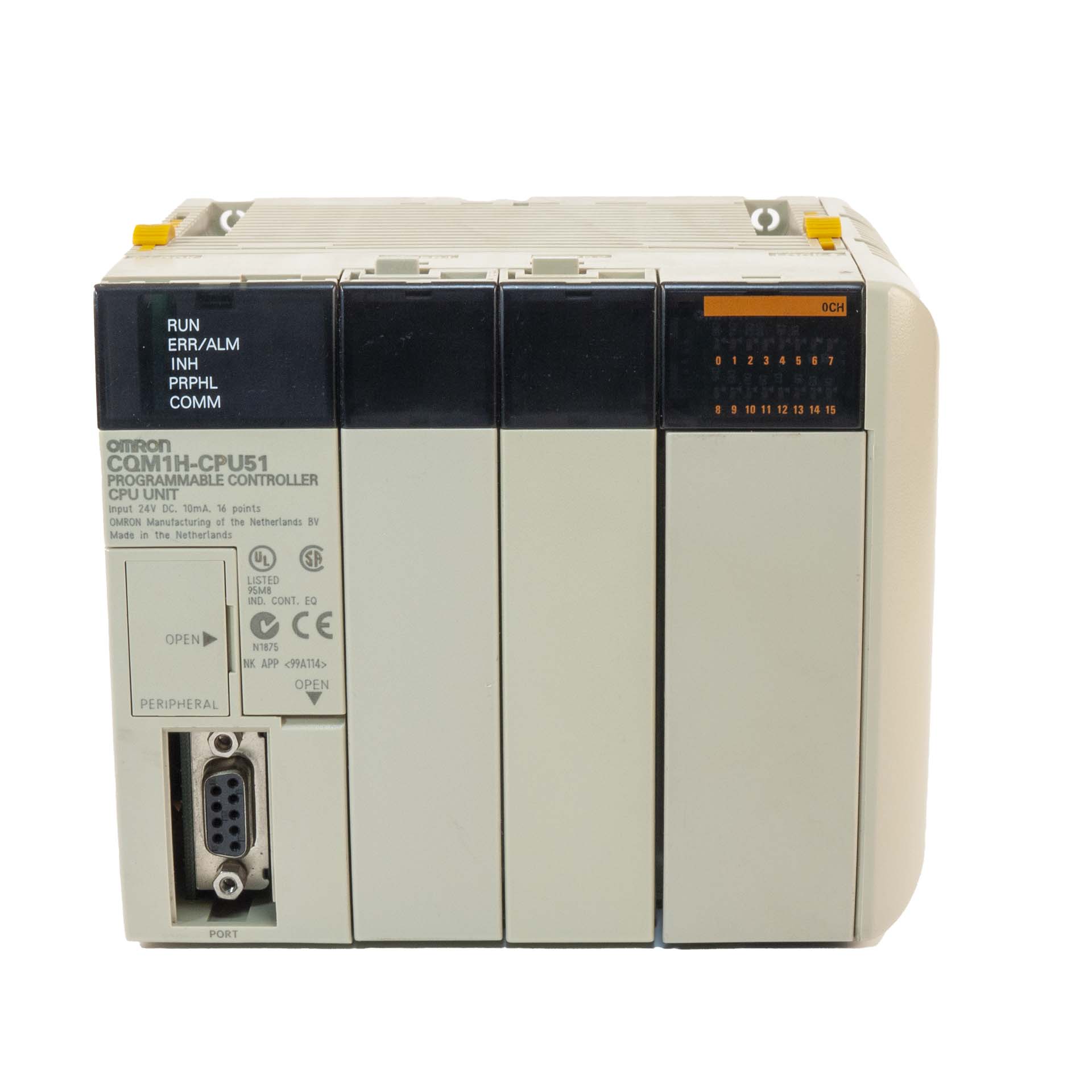

Omron CQM1H-CPU51 PLC CPU Unit
The CQM1H’s rack-less modular design lets you customize your control system by adding “inner boards” for advanced functions, as well as specialized I/O and communications modules. CQM1H offers the most flexibility of all PLC systems in its class.
4 different base CPUs to choose from; 16 DC inputs built in; expands up to 512 points
No separate backplane required
Inner Boards allow “customized” configuration of the CPU
Serial communications inner board supports protocol macro feature for communication with third-party serial devices
Supports all existing and new CQM1 I/O and specialized I/O modules

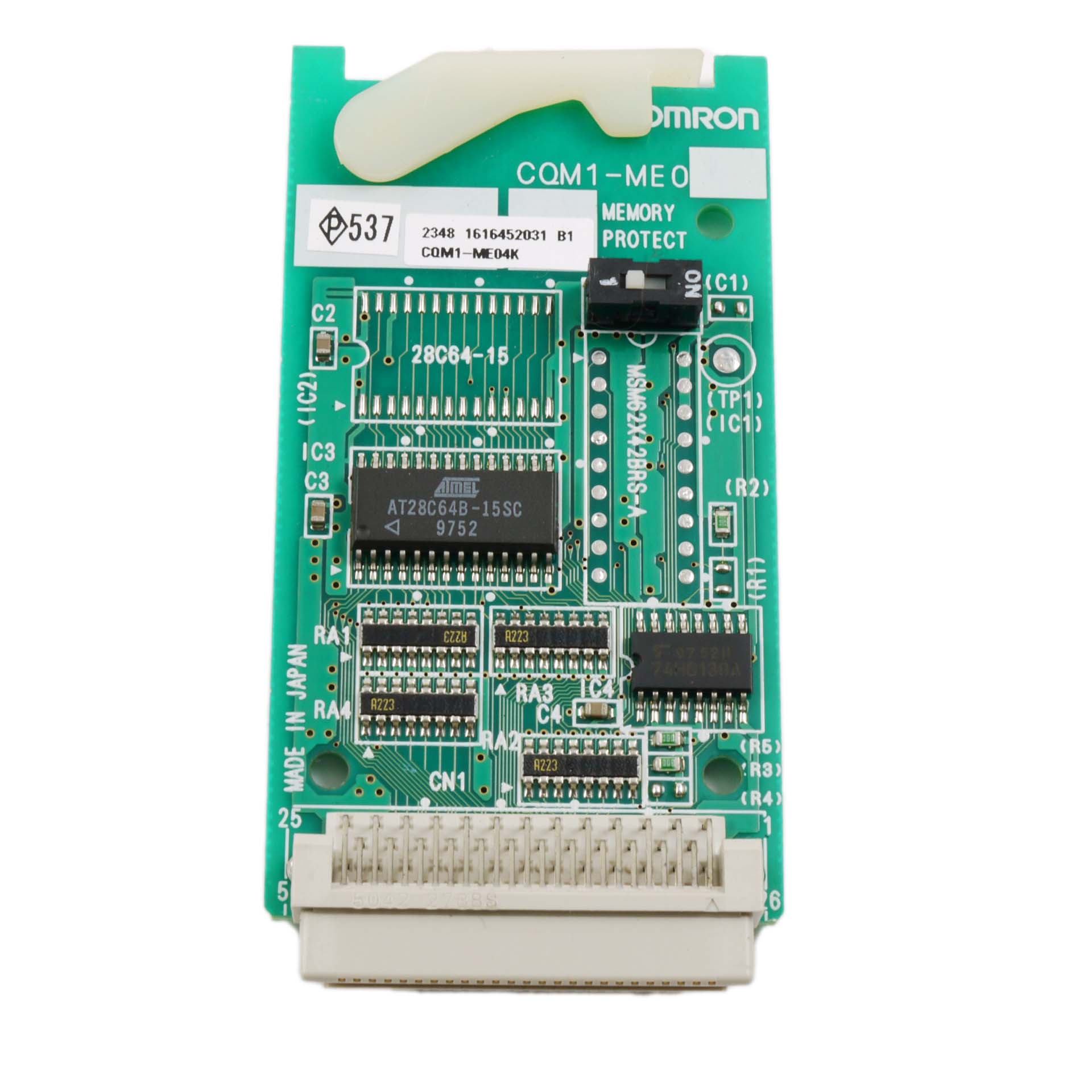

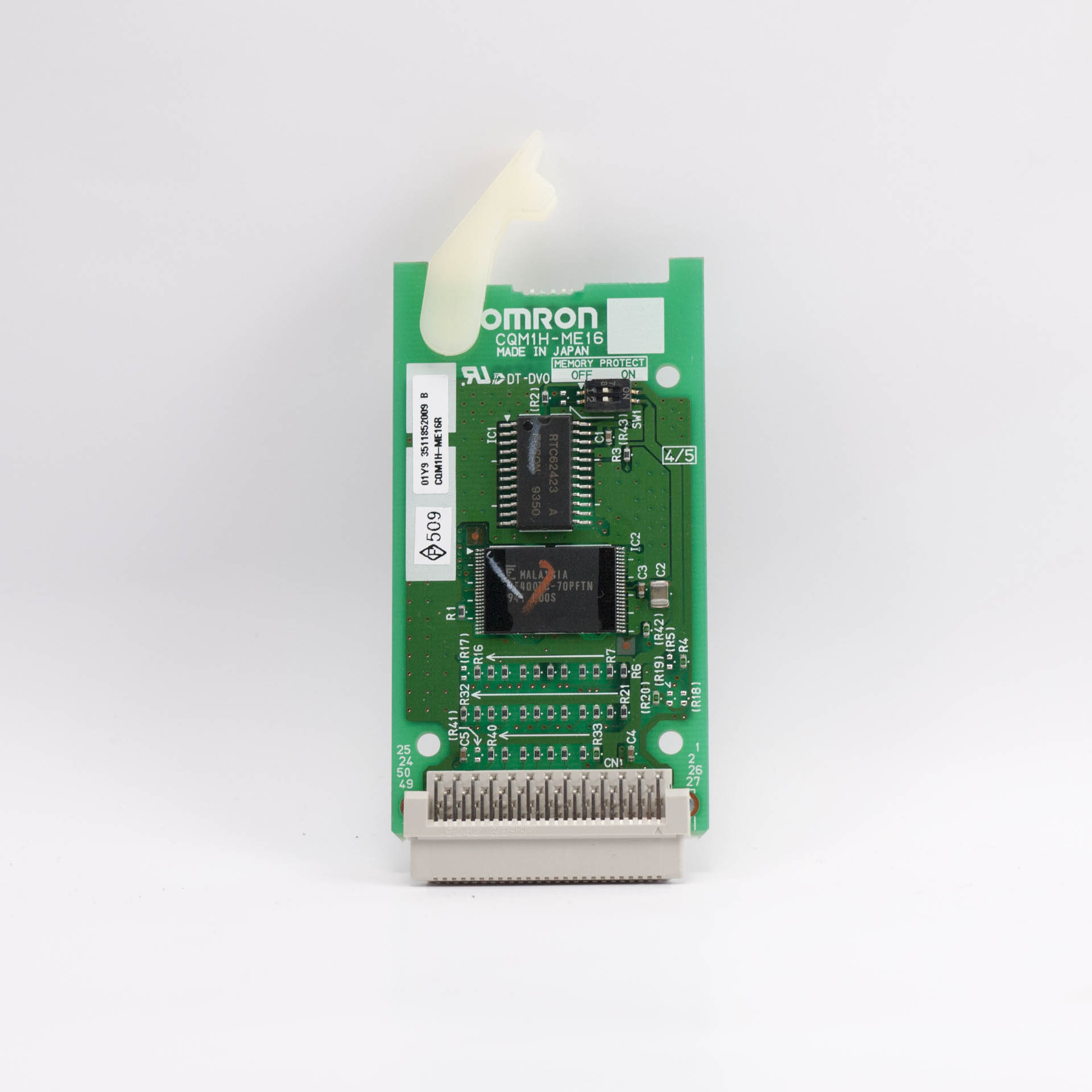

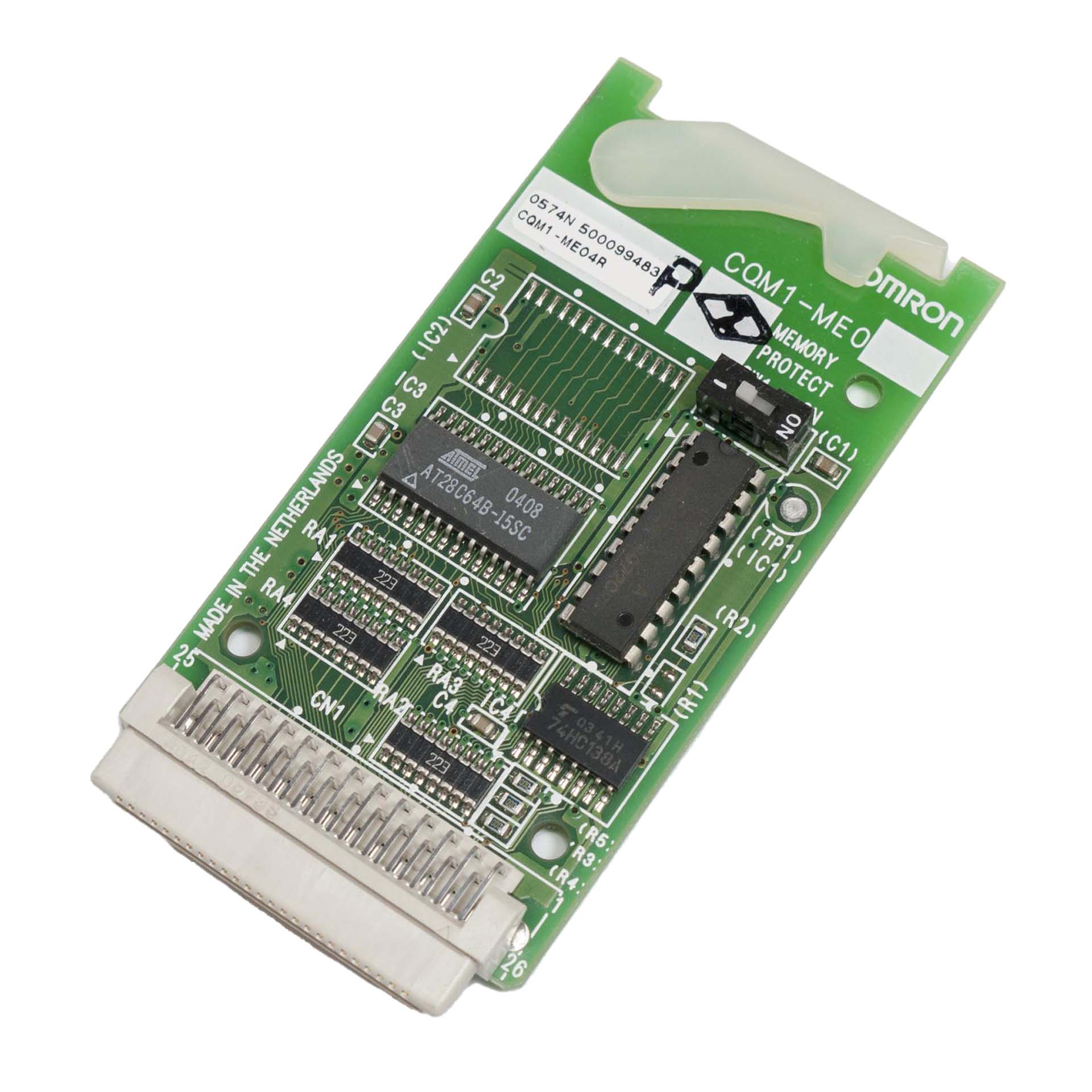

Optional memory cassettes allow backup of sensitive data, provides a real-time clock
ControllerLink network transmits 8 kword data packets at up to 2 Mbps; 32 nodes
Advanced instruction set includes PID, floating point
CompoBus/S, SYSMAC BUS and AS-interface masters support remote I/O
7.2 kwords of program memoryA495

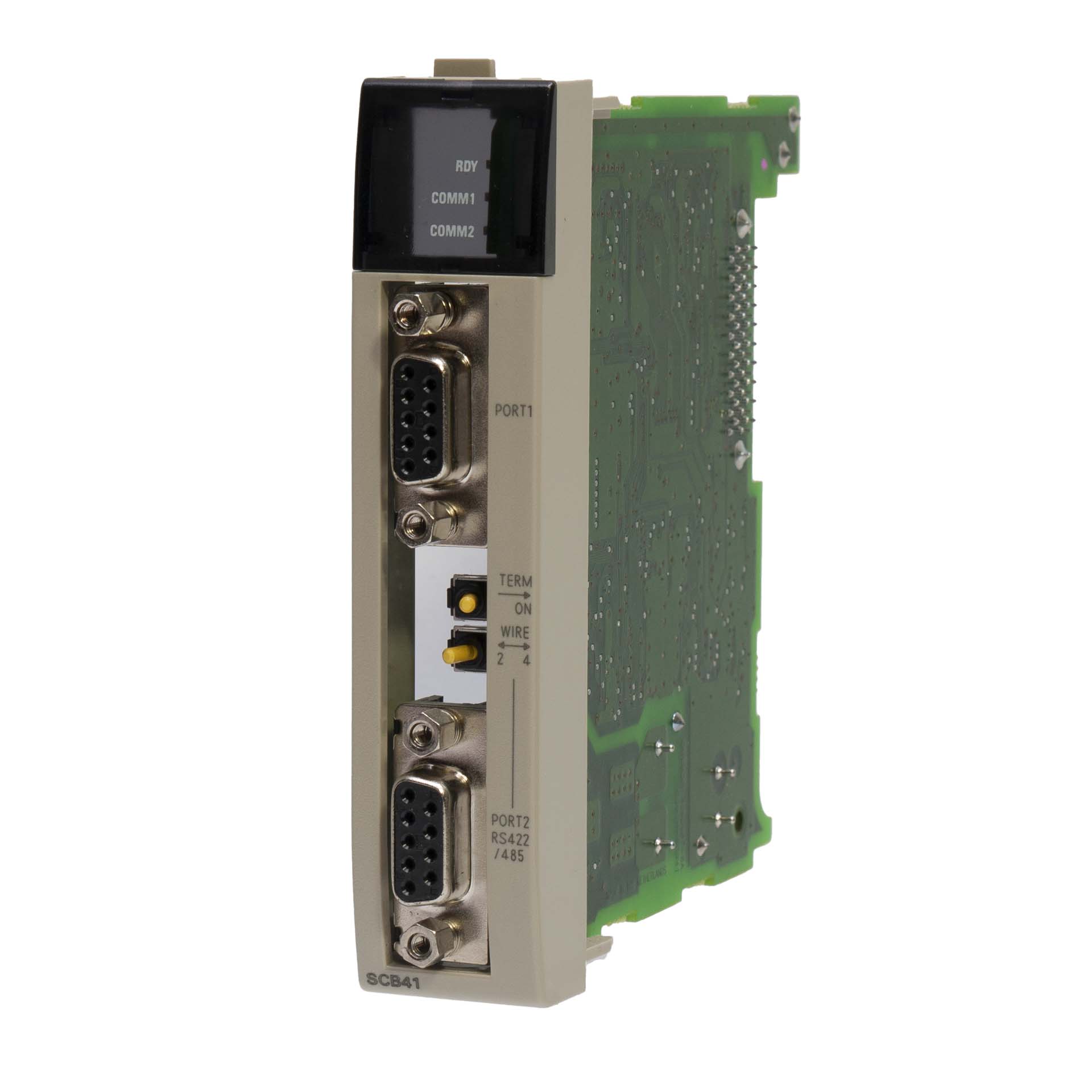

Omron CQM1H-SCB41 Serial Communications Board
One RS-232 portOne RS-422A/485 port
The Serial Communications Board is an Inner Board for the CQM1H-series PCs. One Board can be installed in Inner Board slot 1 of a CQM1H-series CPU Unit. The Board cannot be installed in slot 2.
The Board provides two serial communications ports for connecting host computers, Programmable Terminals (PTs), general-purpose external devices, and Programming Devices (excluding Programming Consoles). This makes it possible to easily increase the number of serial communications ports for a CQM1H-series PC.
The Serial Communications Board is an option that can be mounted in the CPU Unit to increase the number of serial ports without using an I/O slot. It supports protocol macros (which are not supported by the ports built into the CPU Units), allowing easy connection to general-purpose devices that have a serial port.
Both RS-232C and RS-422A/485 ports are provided. The RS-422A/485 port enables 1:N connections to general-purpose external devices without going through Converting Link Adapters. The 1:N connections can be used with protocol macros or 1:N-mode NT Links.
€60.00*
